3K 280gsm V Twill 100% Carbon Fiber Fabric Cloth
$17.68 /SQM
Get It Today
In stock
3K 280gsm V twill 100% carbon fiber fabric cloth for decorative centerline patterns, panels, covers, and visible composite parts.
Shipping note: Carbon fiber cloth is packed and shipped rolled in a 110 cm x 17 cm x 17 cm carton. Since the carton size is often the same for 1 m and 10 m orders, larger length orders can help lower the shipping cost per meter.
3K 280gsm V Twill 100% Carbon Fiber Fabric Cloth

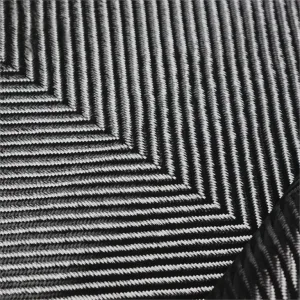

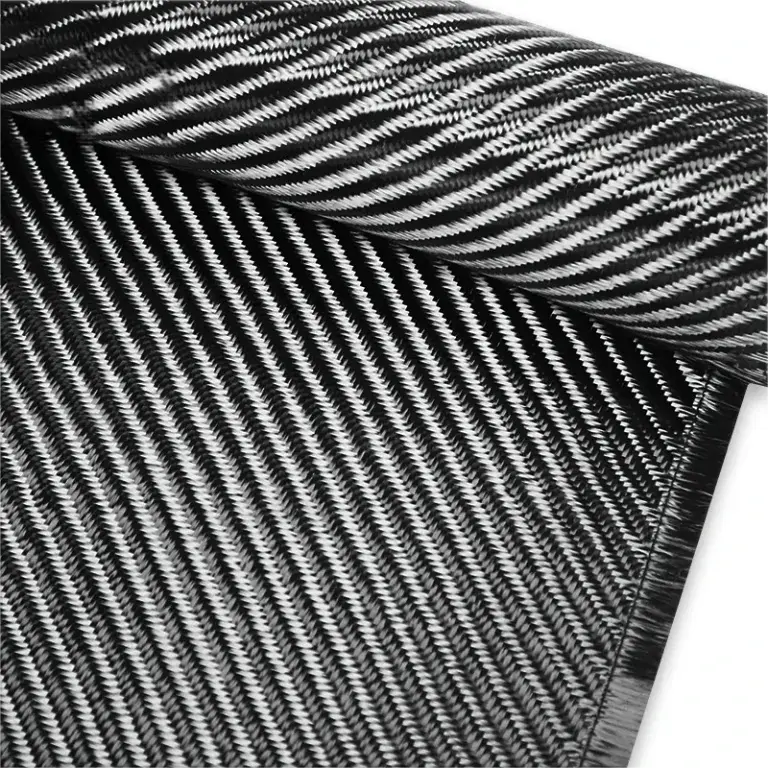

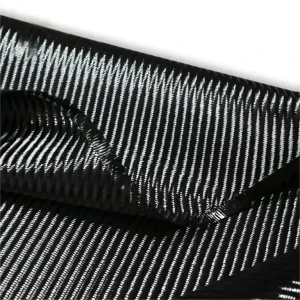

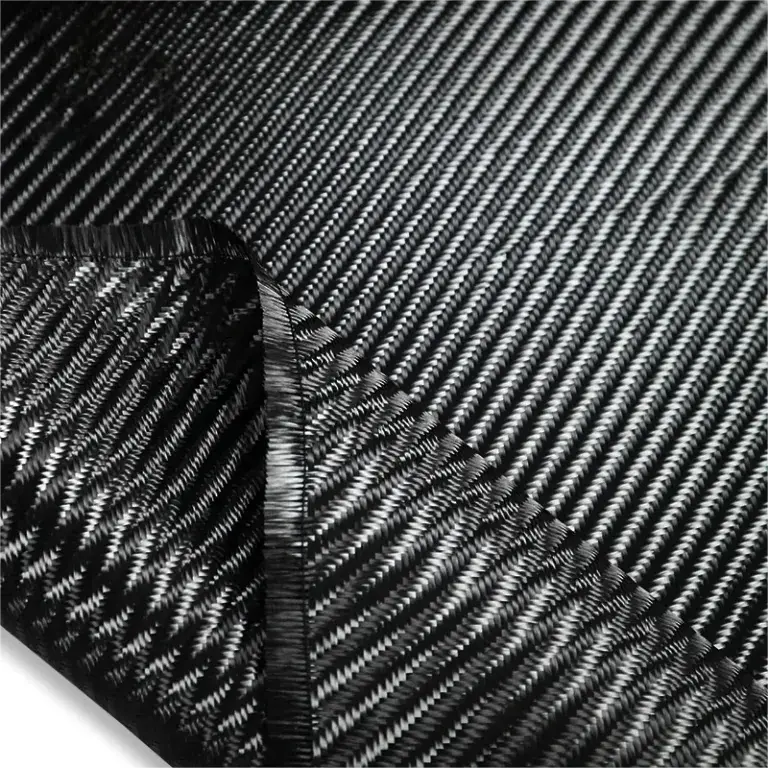

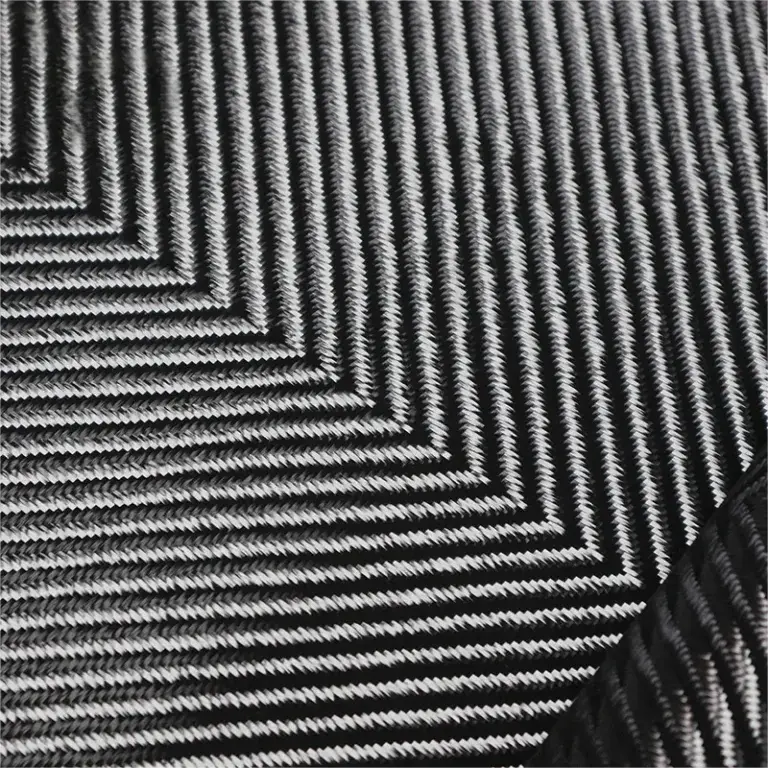

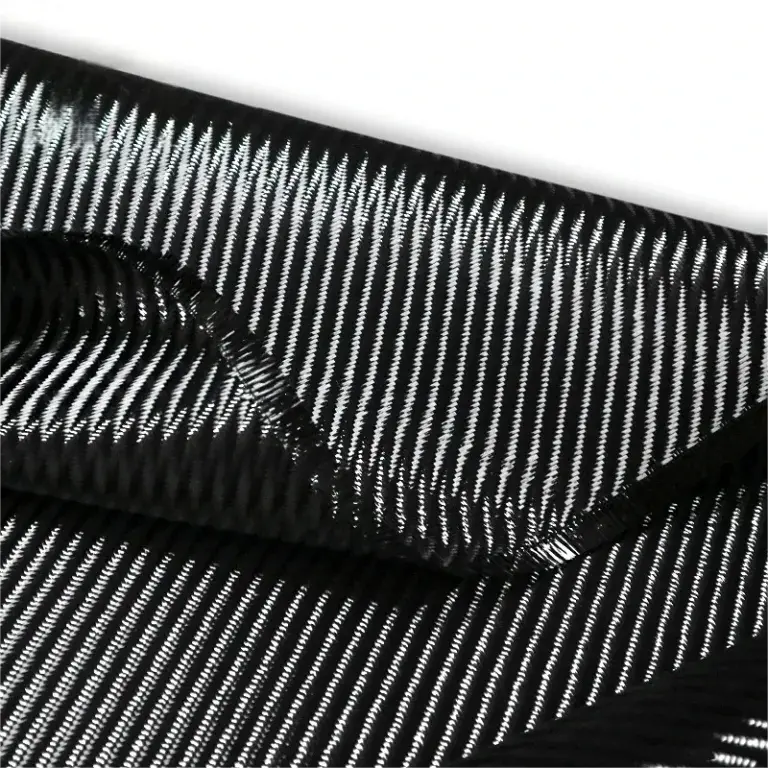

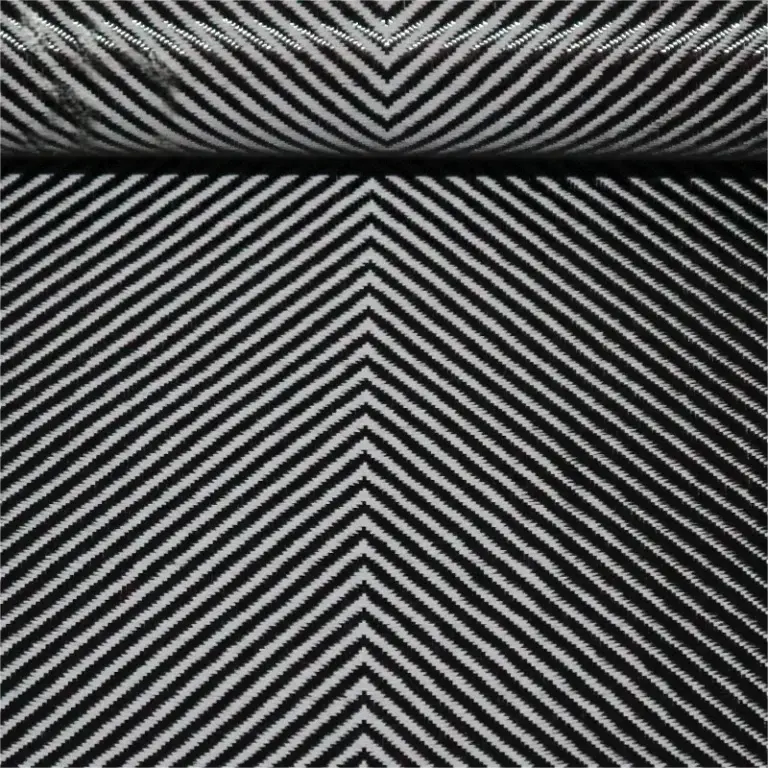

This 3K 280gsm V twill 100% carbon fiber fabric cloth is woven to create a V-shaped twill appearance for visible composite surfaces. The pattern is useful when a centered directional carbon fiber effect is desired on panels, covers, trim pieces, hoods, fairings, and other custom parts.
The 3K tow count gives a familiar carbon texture, while the 280gsm areal weight provides a midweight reinforcement for wet layup, vacuum bagging, resin infusion, carbon fiber skinning, and decorative laminates. The V twill design should be positioned carefully so the pattern lines up with the main visual axis of the part.
- Material: 100% woven carbon fiber fabric.
- Tow count: 3K.
- Areal weight: 280gsm.
- Pattern: V twill carbon fiber appearance.
- Typical use: visible outer layers, panels, covers, trim, and custom composite parts.
Before production, make a layout plan and test panel to confirm the pattern orientation, resin wet-out, and final surface finish.
| Weight | 280 g |
|---|---|
| Dimensions | 1.1 × 0.1 × 0.1 m |
| Color | 100cm x 1m |
| Brand | |
| Size | 3k280gsm |
